All products
Accent LED
Luminaire type
Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Track | Surface Mounted
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
|
Luminaire type Spot Light, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Track | Surface Mounted
Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Barn Door Option on request
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V. |
|
PROFILER TRACK
Single | Three Phase Track
The single and three -circuit (for DALI dimming) power track system made of aluminum for flexible applications adapts to all retail and other areas – whether mounted horizontally or vertically, or as a suspended system. Thanks to two lengths of 1000 / 2000 mm, customized configurations can be easily put together.
Astral LED
|
Luminaire type Recessed LED downlight in 300 / 450 / 600 mm Dia. with deformed aluminum housing and 750 / 900 mm Dia. in deformed metal housing, powder coated, satin diffuser with integral low THD (<10%) Philips/ BAG / Fulham electronic driver. IP 20. Applications Architectural accents, Meeting rooms, Reception rooms, Foyers, Lobbies, Corridors, Halls, Restaurants and Care homes. Mounting methods Recessed / Pendant / Surface mounted. Optical system Harmonious light effect due to homogeneously illuminated light emission across satin diffuser. LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 90 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish Deformed Metal Housing with seamless finish, with / without trim, powder coated. Satin diffuser, IP 20. Electrical connection Mains connection is achieved via connection cable. Electrical version Powered by integral SMPS based constant current electronic driver with low THD, output short circuit and surge voltage protection, switchable | DALI |

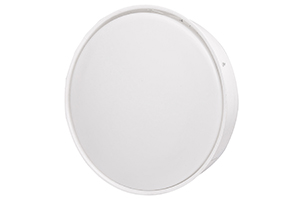

ATTIC LED
|
Luminaire type Rounded edge back lit luminaire with trim and deep recessed diffuser with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Applications Workstation Areas, Halls, Ambient Lighting.
Mounting methods Recessed in plasterboard ceilings.
Optical system Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Body with Offset PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

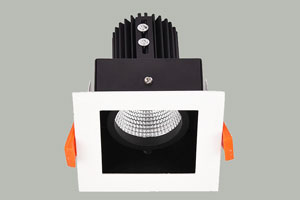

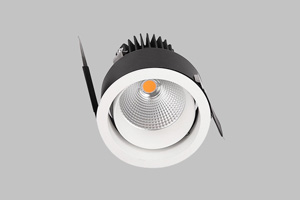

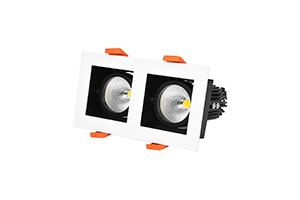

Board
Luminaire type
Adjustable spotlight, recessed – Modular; Citizen / Osram COB with low THD (<10%) LED Philips / BAG/ Fulham electronic driver. IP 20, deformed metal housing with metal frame and aluminum heat sink.
Applications
Accent/Shop Lighting, Hospitality, Reception, Foyers, Lobbies, Corridors, Halls and Restaurants.
Mounting methods
Recessed spotlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 14, 24, 36 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Deformed Metal Housing with Metal Frame, Aluminum Heat Sink for optimum heat dissipation; IP 20. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

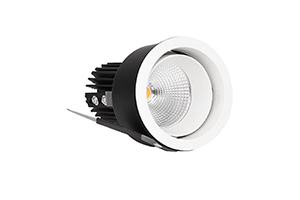

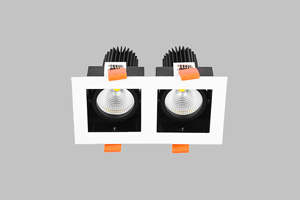

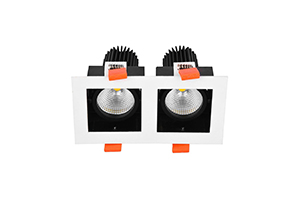

Board HS
|
Luminaire type Adjustable high-power spotlight, recessed – Modular; Citizen / Osram COB with low THD (<10%) LED Philips / BAG/ Fulham electronic driver. IP 20, deformed metal housing with metal frame and aluminum heat sink.
Applications Accent/Shop Lighting, Hospitality, Reception, Foyers, Lobbies, Corridors, Halls and Restaurants.
Mounting methods Recessed high-power modular spotlight, adjustable; for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system UV protected clear glass for bright spot light, beam angles – 12, 14, 24, 36 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Deformed Metal Housing with Metal Frame, Aluminum Heat Sink for optimum heat dissipation; IP 20. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

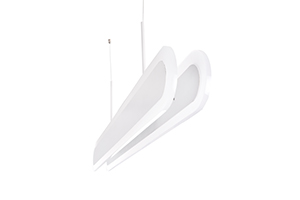

DIAPHANO LED
|
Luminaire type Suspended luminaire with transparent wing structure to facilitate soft light from the master light in middle and edge light on sides to ensure soft and glare free illumination through light guided diffuser having low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Applications Workstation Areas, Cabins, Receptions, Conference Rooms and Halls.
Mounting methods Suspended
Optical system
40 W Homogeneously illuminated soft light emission from a micro-prismatic anti-glare cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Body with Micro-prismatic PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

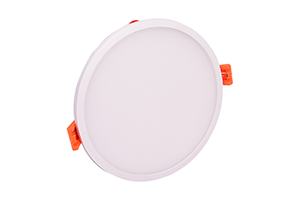

Frizbee
Luminaire type
Recessed panel downlighter, round; LEDwithlow THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-castAluminum housing, IP 20.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham)with low THD, output short circuit safety and surge voltage protection, switchable | DALI | Tunable White. Operating voltage range 140-270 V.

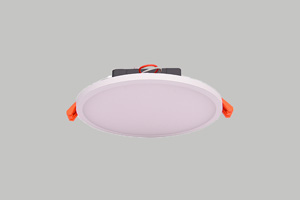

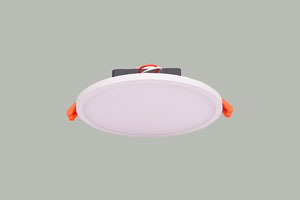

FRIZBEE LED
Luminaire type
Recessed panel downlighter, round; LED with low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system
Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h,
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

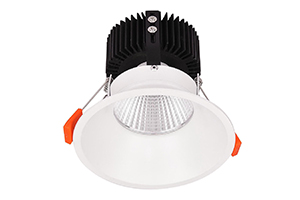

Lance LED
Luminaire type
Recessed downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
Oval Beam Angle on request for Wall Wash Option.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
LED LASER
Luminaire type
Recessed luminaire with Aluminum profile housing, CREE make COB, low THD (<10%) LED Philips / Fulham / BAG electronic Driver. IP 20.
Available: With / Without Trim
Options: Suspended & Wall washer on request
Applications
Offices, corridors. Foyers, Conference Rooms, Retail Spaces, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed.
Suspended option available on request in ‘With Trim Version’.
Optical system
UV protected clear glass diffuser, 9-degree beam angle
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 120 Lm / W (3000 K) and 125 Lm / W (4000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Aluminum profile housing, Powder Coated. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

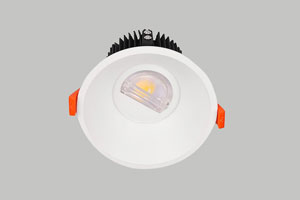

LU LED
Luminaire type
Recessed downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

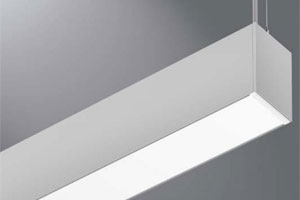

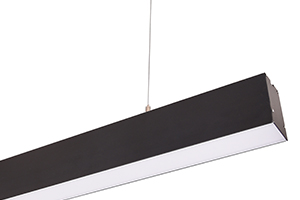

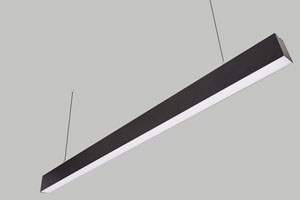

LYNUS BD LED
Luminaire type
System luminaire for suspended applications with LED in areas with false ceilings and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, anodized aluminum housing, powder coated.
Applications
Workstation Areas, Cabins, Receptions, Halls and Architectural applications.
Mounting methods
Suspended Applications in areas with false ceilings.
Optical system
Lynus BD – Direct – Indirect light emission through cover of extruded translucent PMMA.
LED system
Efficient state of the art LEDs, (30 W + 15 W) Luminous efficiency of luminaire 110 Lm / W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum with PMMA diffuser, available in single lengths of 600 mm to 3600 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

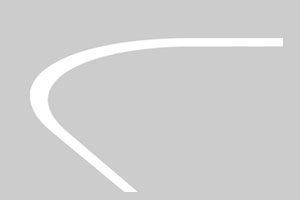

LYNUS CURVI LED
|
Luminaire type Aluminum profile, rolled and seamlessly welded to yield a 55 mm wide continuous light emission for installation in plasterboard ceilings with low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, powder coated.
Applications Workstation Areas, Conference Rooms, Lobbies, Halls, Architectural applications.
Mounting methods Recessed Mounted, Profile with trim.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of opal PMMA diffuser with diffuser film for even light distribution.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Profile Housing, Opal PMMA diffuser; available in multiples of meter lengths.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Lynus H
Luminaire type
Pendant luminaire with LED, IP 20. Two rows of parallel acrylic conjoined through a metal housing with low THD (<10%) Philips / BAG/ Fulham electronic Driver; “H” shape.
Applications
Decorative and Architectural applications.
Mounting methods
Suspended mounted.
Optical system
Two rows of Acrylic forming “H” shape giving all around directional light effect due to homogeneously illuminated light emission.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 80 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
100 mm high, 2 x 12 mm acrylic conjoined in “H” shape through metal housing containing the driver.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
LYNUS LED
|
Luminaire type System luminaire with trim for cut out ceilings with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. Recessed Mounted version in powder coated anodized aluminum. IP 20, powder coated.
Applications Workstation Areas, Halls, Architectural applications.
Mounting methods Recessed Mounted
Optical system Lynus 5050 R - Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA diffuser.
Lynus 50100 Sky - Skylight effect due to deep recessed & homogeneously illuminated light emission. Cover of translucent PMMA diffuser.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, (100 Lm/W for Sky Version), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Profile Housing, Clip on BWF diffuser; available in single lengths of 600 mm to 3600 mm.
Optional: Width in range of 20 mm to 300 mm available on request.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
LYNUS LED C
Luminaire type
Pendant luminaire with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, Metal reflector in “C” shape.
Applications
Decorative and General lighting applications.
Mounting methods
Surface mounted.
Optical system
185 mm metal reflector “C” shape reflecting light effect indirectly on the work plane.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 50 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
200 mm high, 185 mm wide “C” shape deformed metal reflector housing LEDs in an aluminum profile.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Lynus LED V
|
Luminaire type Pendant luminaire with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, anodized profile housing in “V” shape, invertible.
Applications Decorative and General lighting applications.
Mounting methods Suspended.
Optical system PMMA diffuser on either / both sides for Direct Up / Direct Down / Direct - Indirect light effect on the work plane.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Efficiency mentioned is for Downlight Component.
Ra > 90 and Tunable white available on request.
Luminaire body 110 mm high, 50 / 15 mm wide “V” shape reflector housing LEDs in an aluminum profile. Maximum Single module available of up to 3600 mm, Invertible.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
LYNUS LED-1
|
Luminaire type System luminaire for surface mounted or suspended applications with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, anodized aluminum housing, powder coated.
Applications Workstation Areas, Halls, Architectural applications.
Mounting methods Suspended / Surface mounted for Lynus 5070 / 5070 FL. / 7070.
Optical system Lynus 5070 FL – Three directional volumetric light emission. Three side cover of extruded translucent PMMA.
Lynus 5070 / 7070 - Harmonious light effect due to homogeneously illuminated light emission. Cover of clip on BWF diffuser for 5070 and cover of translucent PMMA for 7070.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm / W - 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum with PMMA diffuser, available in single lengths of 600 mm to 3600 mm for Lynus 5070 & 7070, and 600 mm to 2400 mm for Lynus 5070 FL.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
LYNUS LENSLAR LED
|
Luminaire type System luminaire for suspended / cut out ceilings with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. Housing in powder coated anodized aluminum with spot lights on either end. IP 20.
Applications Workstation Areas, Receptions, Cabins, Retail Spaces, Halls and Architectural applications.
Mounting methods Suspended / Recessed Mounted
Optical system Lynus LENSLAR - Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent clip-on BWF diffuser.
LED system Efficient state of the art LEDs available in 3 W+ 20 W + 3 W Modules, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Aluminum Profile Housing, Clip on BWF diffuser; available in single lengths of 1200 mm (150+900+150).
Single lengths of 1200 mm to 3600 mm.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
LYNUS SC LED
Luminaire type
System luminaire for serviced ceilings, with LED and low THD (<10%) Philips / BAG/ Fulham electronic Driver. IP 20, deformed metal housing, powder coated.
Applications
Workstation Areas, Halls with serviced ceilings – TechZone.
Mounting methods
Recessed mounted for special ceilings.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent Satin diffuser.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Deformed Metal housing, Powder-Coated, with clip-on BWF diffuser, available in single lengths of 600 mm to 2400 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG/ Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Lynus TZ
Luminaire type
System luminaire for serviced ceilings, with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, extruded aluminum anodized housing, powder coated.
Applications
Workstation Areas, Halls with serviced ceilings – TechZone.
Mounting methods
Recessed mounted for special ceilings.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent BWF diffuser.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 110 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Anodized Aluminum housing, Powder-Coated, with PMMA diffuser, available in single lengths of 600 mm to 3600 mm.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

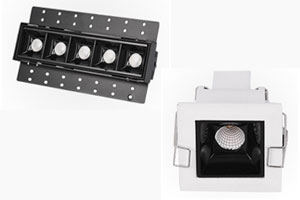

MOSAIC LED
Luminaire type
Recessed downlighter | wall washer round; high power LED, recessed with Aluminum die cast housing and power coated reflector and low THD (<10%) Philips / BAG / Fulham electronic Driver.
Applications
Offices, Corridors, Foyers, Conference rooms, Showcases,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Wall washer option available.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
High power Citizen / Osram COB with LEDIL lens of European origin and PETA make reflector providing a beam angle of 7-10 degree.
*Available Beam angles for Wall washer – 10 / 15 / 24/ 36 and 60 Degrees.
LED system
Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Pane
Luminaire type
Slim Trim Recessed panel downlighter, square; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing.
Applications
Offices, Corridors, Foyers, Conference rooms,
Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods
Recessed downlight for cut-out ceiling openings. Tool-free ceiling installation via rapid mounting springs.
Optical system
Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system
Luminous efficiency of luminaire 85-100 Lm/W depending on the color temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 AND Tunable white available on request.
Housing / Finish
Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit.
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
PLANAS LED
|
Luminaire type Surface mounted trim less downlighter, slim & square; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing and metal frame.
Applications Foyers, Lobbies, Balconies, Canopied Areas.
Mounting methods Surface mount downlight for canopied areas. Easy ceiling mounting via screws.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit housed in metal body, powder coated.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.

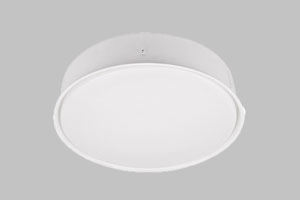

PLATEAU LED
|
Luminaire type Surface mounted trim less downlighter, slim & round; with LED and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, die-cast Aluminum housing and heat sink housed in a metal frame.
Applications Foyers, Lobbies, Balconies, Canopied Areas.
Mounting methods Surface mount downlight for canopied areas. Easy ceiling mounting via screws.
Optical system Harmonious light effect due to homogeneously illuminated light emission. Cover of translucent PMMA.
LED system Luminous efficiency of luminaire 85-100 Lm/W depending on the colour temperature, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Luminaire body Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, forming a compact unit, housed in a metal frame, powder coated.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
Prisma LED
|
Luminaire type Suspended / surface mounted downlighter, square; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Colour on Request.
Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Suspended / surface mounted downlight.
Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
“S” is small housing, “L” is large housing.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V
Pyra LED
|
Luminaire type Suspended / surface mounted downlighter, round; with Citizen / Osram COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Colour on Request. Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential. Mounting methods Suspended / surface mounted downlight. Optical system UV protected clear glass for bright spot light, beam angles – 12, 24, 48 and 60 degrees delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR. LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h. Ra > 90 and Tunable white available on request. Housing / Finish White Powder coated finish, Pressure die-cast aluminum housing and heat sink for optimum heat dissipation, metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance. “S” – Small, “L” – Large Housing Electrical connection Mains connection is achieved via connection cable. Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V
QUADRA V | QUADRA S LED
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
|
Luminaire type LED full panel, Back Lit square with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing in two variants for volumetric / sky light effect.
Applications Airport Lounges, Corporate Offices, Banks & ATMS, Software & Data Centers, Hospitals & Educational Institutes, Workstation Areas and Halls.
Mounting methods Recessed
Optical system Quadra V: Volumetric Light Effect through floating cover of translucent PMMA.
Quadra S: Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish Powder Coated Sheet Metal Body with PMMA diffuser
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI
Quadrangle
Luminaire type
LED full panel, Back Lit square; with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated sheet metal housing.
Applications
Workstation Areas, Halls.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham)with low THD, output short circuit and surge voltage protection, switchable | DALI | Tunable White.
Quadrangle Slimline
Luminaire type
LED panel, square; with low THD (<10%) Philips / BAG / Fulhamelectronic Driver. IP 20, powder coatedaluminum sheet metal and aluminum profile housing.
Applications
Workstation Areas, Halls.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI | Tunable White
RETRA LED
Luminaire type
Rounded panel, Back Lit square with trim and deep recessed diffuser and low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Applications
Workstation Areas, Halls and All Ambient Lighting applications.
Mounting methods
Recessed in plasterboard ceilings.
Optical system
Sky light effect due to homogeneously illuminated light emission from a deep recessed cover of translucent PMMA.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum Body with Offset PMMA diffuser
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DALI

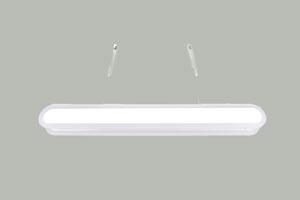

SLENDER LED
Luminaire type
Soft Edge luminaire with end caps, Satin / micro prismatic diffuser with low THD (<10%) Philips / BAG / Fulham electronic Driver. IP 20, powder coated aluminum housing.
Available to be configured as a system with or without spacers.
Applications
Workstation Areas, Cabins, Receptions, Conference Rooms and Halls.
Mounting methods
Suspended
Optical system
30 W Homogeneously illuminated Direct – Indirect light emission from a micro-prismatic anti-glare cover of translucent PMMA.
LED system
Efficient state of the art LEDs, Luminous efficiency of luminaire 100 Lm/W, color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
RA > 90 and Tunable white available on request.
Housing / Finish
Powder Coated Aluminum Body with Micro-prismatic PMMA diffuser
Electrical connection
Mains connection is achieved via connection cable.
Electrical version
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit and surge voltage protection, switchable | DAL
Zebron LED
|
Luminaire type Recessed | suspended doughnut shaped luminaire, round in 450 | 600 | 750 mm Dia; with branded COB and low THD (<10%) LED Philips / BAG/ Fulham electronic Driver. Die-cast Aluminum housing, IP 20, Powder coated White. Custom Color on Request.
Please ask for sample to make cut out dia. for recessed models on site.
Applications Offices, Corridors, Foyers, Conference rooms, Retail areas, Waiting Zones, Lobbies, Hospitality and Residential.
Mounting methods Recessed for cut-out ceiling openings | Suspended.
Optical system UV protected clear glass for bright spot light delivering instant and excellent illumination and visual comfort in high ceiling areas even in low operating temperatures, operating range -10 degrees to + 45 degrees centigrade; No UV / IR.
LED system Mercury free and photo biologically safe LEDs, Luminous efficiency of luminaire 110 Lm/W (3000 K), 120 Lm / W (4000 K) and 125 Lm / W (6000 K), color rendering index Ra > 80. Service life L70 (t25 °C) = 50,000 h.
Ra > 90 and Tunable white available on request.
Housing / Finish Deformed Metal Housing, Powder coated finish; metal sleeve for damage free luminaire maintenance. High efficiency anodized / vacuum plated faceted glossy reflector with > 90 % reflectance.
Electrical connection Mains connection is achieved via connection cable.
Electrical version |
Powered by integral SMPS based constant current electronic driver (Philips / BAG / Fulham) with low THD, output short circuit safety and surge voltage protection, switchable | DALI. Operating voltage range 140-270 V.
